BSPP, BSPT, DIN, KOBELCO, KOMATSU, METRIC THREAD GAUGE KIT

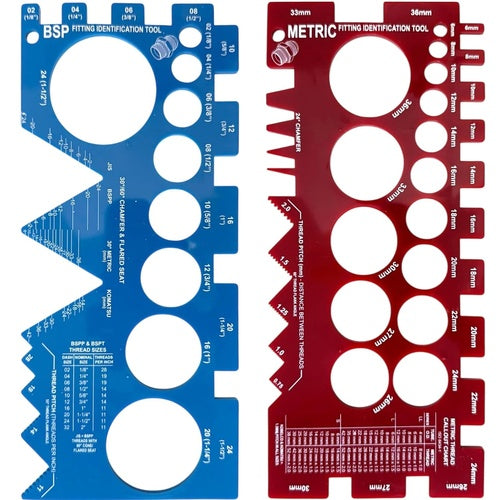

The BSPP & Metric Thread Gauge Kit provides a convenient, cost-effective way to identify Metric and British threaded fittings in the field, shop, or storefront. The kit includes one British gauge (BSPP, BSPT, JIS) and one Metric gauge (MM, DIN, Kobelco, Komatsu), neatly packaged in a durable vinyl pouch. This tool enables accurate identification of internal and external threads, thread pitch, and chamfer and nose cone angles specific to JIS, BSPP, DIN, Komatsu, Kobelco, and 30°/60° Metric fittings.
Sizes Covered
BSPP/BSPT/JIS Tool (x1):
02 (1/8") 1/8-28
04 (1/4") 1/4-19
06 (3/8") 3/8-19
08 (1/2") 1/2-14
10 (5/8)" 5/8-14
12 (3/4") 3/4-14
16 (1") 1-11
20 (1 1/4") 1 1/4-11
24 (1 1/2") 1 1/2-11
Metric/DIN Tube/Kobelco/Komatsu Tool (x1):
M6 x 0.75
M6 x 1.0
M8 x 0.75
M8 x 1.0 / LL04
M10 x 1.0 / LL06
M10 x 1.25
M12 x 1.0 / LL08
M12 x 1.5 / L06
M14 x 1.0 / LL10
M14 x 1.5 / L08 & S06
M16 x 1.0 / LL12
M16 x 1.5 / L10 & S08
M18 x 1.5 / L12 & S10
M20 x 1.5 / S12
M22 x 1.5 / L15 & S14
M24 x 1.5 / S16
M26 x 1.5 / L18
M27 x 2.0
M30 x 2.0 / L22 & S20
M33 x 2.0
M36 x 2.0 / L28 & S25
Thread Pitches Covered
MM Between Threads:
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Threads Per Inch:
28 TPI
19 TPI
14 TPI
11 TPI
