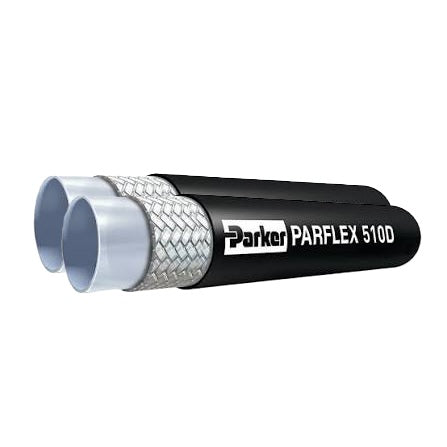

Parker 510D-4-4 (100R7 1/4" Twin Line Thermoplastic Hose) - Sold by the Foot

ParkerProduct Code: 510D-4-4
filler

Price:
$11.87

Description

SOLD BY THE FOOT

Technical Specifications

Minimum Operating Temperature: -40 °F, -40 °C
Design Factor: 4:1
Media: Petroleum Hydraulic Fluids
Specifications Met: DNV GL, ISO 3949, Type R7-1, MSHA, SAE 100R7
Maximum Operating Pressure: 3000 psi, 21 MPa, 210 bar
Maximum Operating Temperature: 212 °F, 100 °C
Minimum Bend Radius: 1-1/2 inch, 38 mm
Compatible Fitting: 56 Series, 51R Series
Application: Hydraulics, Manufacturing, Industrial, Construction Equipment, Agriculture Equipment, Forestry
Inside Diameter: 1/4 inch, 6.3 mm
Weight: 0.06 lb/ft, 0.09 kg/m
Hose Inner Tube Material: Polyamide (PA)
Cover Material: Polyurethane
Hose Reinforcement Material: Fiber
Size: -4
Outside Diameter: 0.470 inch, 11.9 mm
Hose I.D. (inch): 1/4
