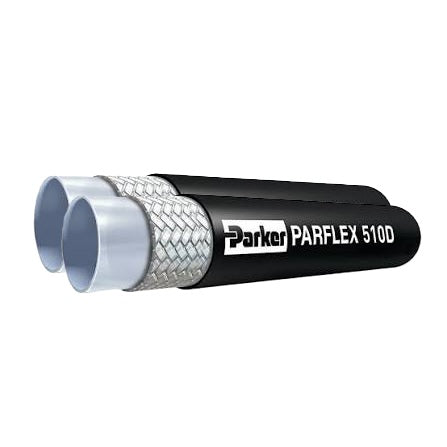

Parker 510D-6-6 (100R7 3/8" Twin Line Thermoplastic Hose) - Sold by the Foot

ParkerProduct Code: 510D-6-6
filler

Price:
$15.26

Description

SOLD BY THE FOOT

Technical Specifications

Minimum Operating Temperature: -40 °F, -40 °C
Design Factor: 4:1
Media: Petroleum Hydraulic Fluids
Specifications Met: DNV GL, ISO 3949, Type R7-1, MSHA, SAE 100R7
Maximum Operating Pressure: 2250 psi, 15.8 MPa, 158 bar
Maximum Operating Temperature: 212 °F, 100 °C
Minimum Bend Radius: 2 inch, 51 mm
Compatible Fitting: 56 Series, 51R Series
Application: Hydraulics, Manufacturing, Industrial, Construction Equipment, Agriculture Equipment, Forestry
Inside Diameter: 3/8 inch, 10 mm
Weight: 0.10 lb/ft, 0.14 kg/m
Hose Inner Tube Material: Polyamide (PA)
Cover Material: Polyurethane
Hose Reinforcement Material: Fiber
Size: -6
Outside Diameter: 0.640 inch, 16.3 mm
Hose I.D. (inch): 3/8
