Description
SPECIFICATIONS
| Applications: | Agriculture, Horticulture, Chemical transfer, Foam systems, Food processing, Forestry delimber, General construction, General hydraulic systems, Lubrication systems, Marine steering, Utility vehicles and pickers, Rescue apparatus & tools, Water jetter drain/sewer | ||
|---|---|---|---|
| SAE Rating: | SAE 100R7 | Other Ratings: | 92.2 ANSI (-4 thru -10) |

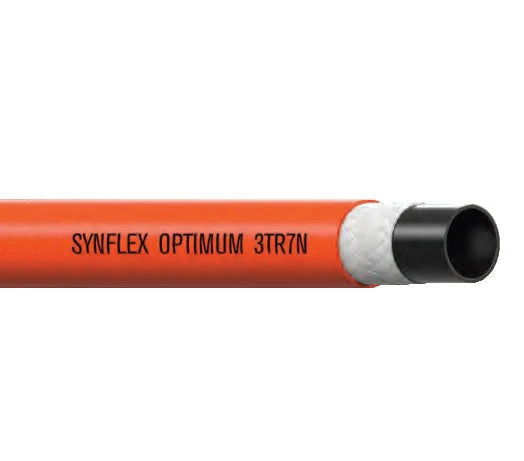

| Tube: | Nylon | Reinforcement: | 1-textile braid |
| Cover: | Nonstick polyurethane | Temperature Range: | For oil-based fluids: -40°C to +100°C (-40°F to +212°F) For water-based fluids: -40°C to +66°C (-40°F to +150°F) |
| Approved Fittings: | 4TA series, TTC/Z series with sleeve (FF91064), 902 series | Part Number Key |
BC: Continuous length in box BX: 2 lengths per box, no length less than 20 ft. RL: Random length reel, 2 lengths per reel, no length less than 20 ft. R: Continuous length on reel |
